Pronto

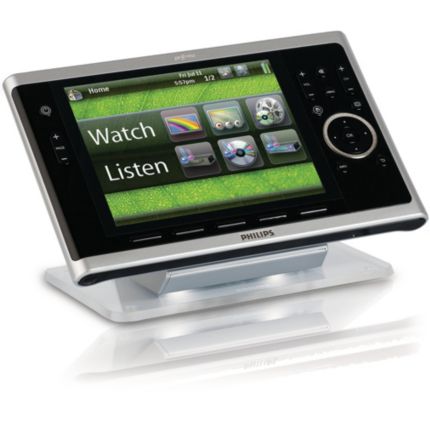

Home Control Panel
TSU9800/37
|
|
| A touch of elegance | |
Cutting-edge design with flush-mounted displayFlush-mounted display means that the screen is not recessed anymore, but instead flows smoothly with the casing. |
|
Ergonomic design for both one- and two-handed controlDesign incorporates special back grip to enable one-handed control, as well as ergonomic 2-handed control. |
|
Built-in stylus for accurate controlA stylus is built into the remote to enable more accurate selection of the buttons on a touchscreen display. |
|
6.4" VGA screen with superb contrast and vivid colors6.4" LCD touchscreen display with 640x480 (full VGA) screen resolution enables a user to discern superb contrast and vivid colors. |
|
| Personalized convenience | |
User interface matching your personal taste and preferencesUser interface can be created to fully incorporate the end user's personal taste and preferences. So, only the devices and buttons that are used most, will be visible on the touchscreen. Also, the graphical design (backgrounds, icons, buttons, colors used) can be chosen by the user. |
|
|
|
Control multiple devices with a single touchOne-touch control allows you to perform multiple commands with one press of a button via a macro. A macro combines a string of pre-programmed commands under one single button. Therefore, it simply takes one button press to execute a series of functions. |
Control hidden equipment and devices in other roomsA range of extenders is available, both wired and wireless versions, that extend the range of transmission of the remote control. This enables the user to control equipment hidden in cabinets or in other rooms with one and the same control unit. |
|
System feedback via dynamic 2-way user interfaceProntoScript, a JavaScript based software tool, enables installers to create a dynamic 2-way user interface for system control over RS232 or IP with full graphical flexibility. The tool is incorporated in the ProntoEdit Professional software. Ready-made ProntoScript modules with Pronto partners are available via the website. For typical installations, you may opt to use standard installation reference files and simply re-assign the various components. More advanced JavaScript programmers will be able to create their own ProntoScript modules for complete system operation and feedback. |
|
| Music, mood and ambiance | |
Music server control with intuitive rotary cursorOut-of-the-box, a user can control his music server e.g. Escient Fireball. The user interface of the music server is built into the remote control. It facilitates listening to music without being in view of a TV, which is normalIy required to display a music server's user interface. This, in combination with an ergonomic thumb wheel on the remote, simplifies selecting tracks and playlists, & also frees up the TV screen for other activities. |
|
Pre-configured lighting control (Lutron RadioRa)Pre-configured lighting control includes a full on-screen user interface for controlling lighting scenes, moods and individual dimmers. With on-screen feedback from lighting throughout the house, the end user knows if the light is actually on or off. |
|
Access digital files from any Windows MCE PCThrough 3rd party software, the Pronto control panel can incorporated Windows MCE PC functionality. This means you are able to access any digital files from your MCE PC via the control panel. |
|
| Picture/Display | |
| Diagonal screen size (inch) | 6.4 inch |
| Display backlight | White |
| Display colors | 65,536 |
| Display screen type | LCD TFT |
| Resolution | 640 x 480 pixels |
| Touch panel | Yes |
| Loudspeakers | |
| Built-in speakers | 1 |
| Connectivity | |
| Connector | Mini USB |
| Encryption / security | WEP 128 bit, WEP 64 bit |
| Network mode | DHCP, Fixed IP |
| Power | 100-240V, 50/60Hz |
| USB | USB 2.0 |
| Wireless LAN | 802.11g |
| Ethernet | Yes |
| Convenience | |
| Automatic power off | Yes |
| Clock with calendar | Yes |
| Cradle/ docking station | Yes |
| Cursor key | Yes |
| Multi language | English, Spanish, French, German, Dutch |
| Pick up sensor | Yes |
| Rotary wheel | Yes |
| Soft touch back for extra grip | Yes |
| Wall mountable | Yes |
| Accessories | |
| AC/DC Adaptor | Yes |
| CD-ROM | Yes |
| Docking Station | Yes |
| Printed User Guide | Yes |
| USB cable | Yes |
| Warranty Card | Yes |
| Wall mounting plate (optional) | Yes |
| System Requirements | |
| CD-ROM drive | Yes |
| Hard disk space | 512 MB free |
| PC OS | Windows 2000, XP, Vista |
| RAM memory | 512 MB free |
| USB | Free USB port |
| Power | |
| Battery capacity | 4200 mAh |
| Battery Type | Li-ion |
| Charging time | Up to 4 hr |
| On/Off switch | Yes |
| Customization | |
| On screen customization | Yes |
| Full screen configurability | Yes |
| Alpha-blending | Yes |
| Macros | Up to 250 steps |
| Database | Configurable personal database, Model number based database |
| Sound | WAV format 44 kHz, 16 bit mono |
| Editor application on PC | ProntoEdit Professional |
| System Specifications | |
| CPU | Freescale 32 bit RISC |
| CPU speed | 266 MHz |
| Flash memory size | 64 MB |
| Ram size | 64 MB |
| Infrared Capabilities | |
| Operating distance | 36 ft (12 m) |
| Learning IR codes | Yes |
| Learning frequency range | 25 kHz - 1 MHz |
| Transmitting LEDs | 5 |
| Universal IR code database | Yes |
| Number of brands in database | Over 3000 |
| RF Capabilities | |
| Frequency (GHz) | 2.4 |
| WiFi based | Yes |
| Outer Carton | |
| Gross weight | 4,067 lb |
| Height | 4,1 inch |
| Length | 15,1 inch |
| Nett weight | 2,601 lb |
| Tare weight | 1,466 lb |
| Width | 13,9 inch |
| Number of consumer packagings | 1 |
| UPC | 6 09585 14018 9 |
| Packaging dimensions | |
| Depth | 4,1 inch |
| Gross weight | 4,067 lb |
| Height | 15,1 inch |
| Nett weight | 2,601 lb |
| Tare weight | 1,466 lb |
| Width | 13,9 inch |
| Number of products included | 1 |
| Packaging type | Dummy |
| Type of shelf placement | Dummy |
| UPC | 6 09585 14018 9 |
| Product dimensions | |
| Depth | 5,6 inch |
| Height | 1,5 inch |
| Weight | 1,497 lb |
| Width | 8,8 inch |
