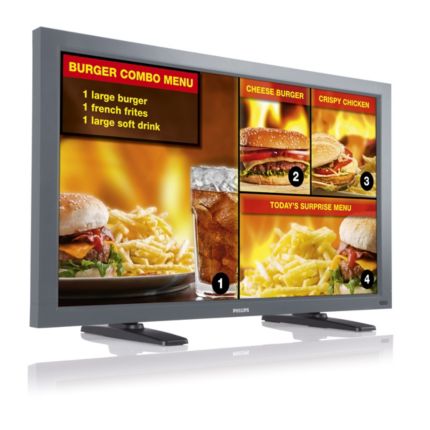

LCD monitor
46" multimedia HDTV monitor
BDL4635E/00
|
|
Operational flexibility for different applications
Monitor is network controllable for remote management
| Optimised for public viewing | |
|
Full HD LCD display, 1920 x 1080pThis display has a resolution that is referred to as Full HD. The state-of-the-art LCD screen technology has the full high definition widescreen resolution of 1080 progressive lines, each with 1920 pixels. This allows the best possible picture quality for HD input signals with up to 1080 lines. It produces brilliant flicker-free progressive scan pictures with optimum brightness and superb colours. This vibrant and sharp image will provide you with an enhanced viewing experience. |
|
HDMI input for full digital HD connection in one cableHDMI makes an uncompressed digital RGB connection from the source to the screen. By eliminating conversion to an analogue signal, it delivers an unblemished image. The non-degraded signal reduces flicker and leads to a clearer picture. HDMI intelligently communicates the highest output resolution with the source device. The HDMI input is fully backwards-compatible with DVI sources but includes digital audio. HDMI uses HDCP copy protection. |
Enhanced zoom feature supports tiled matrix applicationsThe internal zoom function enables easy implementation of a video wall matrix, without the need for expensive external equipment. Capable of a vidiwall of 25 displays by dividing up to 5 displays each horizontally and vertically. |
|
| Operational flexibility for different applications | |
Portrait mode operabilityThis display can also be safely and reliably mounted in portrait position. |
|
Hidden and lockable control buttonsThe local control buttons of the display are placed in such a way that they are less visible for immediate access. Furthermore, the remote control sensor and the local control buttons can be disabled via RS232 to prevent unauthorised control of the display when placed in a public space. |
|
|
Monitor is network controllable for remote managementNetwork controllability allows user to control and adjust monitors remotely through RS232 protocol. |
VGA loop through enables daisy chaining to multiple monitorsMultiple screen daisy chain effectively distributes control and visual content from a single source to an array of monitors in various locations within a site. |
|
| Lower total cost of ownership | |
Advanced anti-image sticking functionStatic images left on-screen for extended periods of time may leave a "ghost image" or image-sticking effect on LCD displays. Although image sticking in LCD displays is not permanent, you want to prevent from happening, especially in locations where content is shown almost 24/7. |
|
| Sustainable and safe | |
Complies with RoHS standards of care for the environmentPhilips designs and produces display products in compliance with strict Restriction of Hazardous Substances (RoHS) standards that restrict lead and other toxic substances that can harm the environment. |
|
| Picture/Display | |
| Display screen type | LCD Full HD W-UXGA Act. matrix |
| Diagonal screen size (inch) | 46 inch |
| Diagonal screen size (metric) | 116.8 cm |
| Aspect ratio | 16:9 |
| Pixel pitch | 0.53025 x 0.53025 mm |
| Optimum Resolution | 1920 x 1080 @ 60 Hz |
| Brightness | 450 cd/m² |
| Contrast ratio (typical) | 3500:1 |
| Display colours | 16.7 million colours |
| Viewing angle (horizontal) | 178 degree |
| Viewing angle (vertical) | 178 degree |
| Response time (typical) | 8 ms |
| Horizontal Scanning Frequency | 31.5 - 91.1 kHz |
| Vertical Scanning Frequency | 58 - 85 Hz |
| Picture enhancement | 3/2 - 2/2 motion pull down, 3D Combfilter, Motion compens. deinterlacing, Picture in Picture, Progressive Scan, 3D MA deinterlacing |
| Supported Display Resolution | |
| Computer formats | 640 x 480, 60, 75 Hz, 720 x 400, 70 Hz, 800 x 600, 60 Hz, 1024 x 768, 60 Hz, 1280 x 720, 60 Hz, 1280 x 768, 60 Hz, 1360 x 768, 60 Hz, 1600 x 1200, 60 Hz, 1920 x 1080, 50, 60 Hz |
| Video formats | 480i, 60 Hz, 480p, 60 Hz, 576i, 50 Hz, 720p, 50, 60 Hz, 1080i, 50, 60 Hz, 1080p, 60 Hz |
| Connectivity | |
| PC | VGA-in D-Sub 15HD, VGA-out D-Sub 15HD, RS232 D-Sub9, RS232 D-sub9 output, 3.5 mm PC audio input x 1 |
| AV input | HDMI x 2, Component (YPbPr) x 1, Audio (L/R) for YPbPr x 1, Composite (CVBS) x 2, S-video x 1, Audio (L/R) x 2 for CVBS and S-Vid |
| AV output | Composite (CVBS) x 1, Audio (L/R) x 1 |
| Connectivity Enhancements | External Loudspeaker connector |
| Convenience | |
| OSD Languages | English, French, German, Italian, Spanish, Polish, Turkish, Russian |
| Detachable Audio | 2 x 7 Watts (optional) speakers |
| Network controllable | RS232 |
| Placement supported | Portrait, Landscape |
| VESA Mount | 400 x 200 mm |
| Regulatory Approvals | CE Mark, RoHS, FCC Class A, UL |
| Tuner/Reception/Transmission | |
| Video Playback | NTSC, PAL, SECAM |
| Power | |
| Consumption (On mode) | 165 W (typical) |
| Mains power | 90-264 VAC, 50/60 Hz |
| Standby power consumption | < 5 W |
| Dimensions | |
| Set Depth | 138 mm |
| Set Height | 663 mm |
| Set Width | 1122 mm |
| Set Depth (inch) | 5.4 inch |
| Set Height (inch) | 26.1 inch |
| Set Width (inch) | 44.2 inch |
| Set depth (with stand) | 406 mm |
| Set height (with stand) | 705 mm |
| Set depth (with stand) (inch) | 16.0 inch |
| Set height (with stand) (inch) | 27.8 inch |
| MTBF | 50,000 (excl. CCFL 60,000) hrs |
| Technical specifications | |
| Operating temperature range | 0 - 40 °C |
| Relative humidity range | 5% - 90% |
| Accessories | |
| Included Accessories | HDMI-DVI adapter cable, VGA cable, Remote Control, Batteries for remote control, User manual on CD-ROM, AC Power Cord, Quick start guide |
| Optional accessories | Table stand BM05211, Speakers BAL4631S1, Ceiling mount BM04111 and BM01111, Fixed wall mount BM02111, Flex wall mount BM04111 and BM02212 |
| Miscellaneous | |
| Warranty | Europe/North America: 3 years |
| Bezel | metallic anthracite |

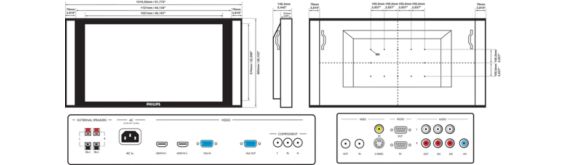

| Connector drawing |
|
