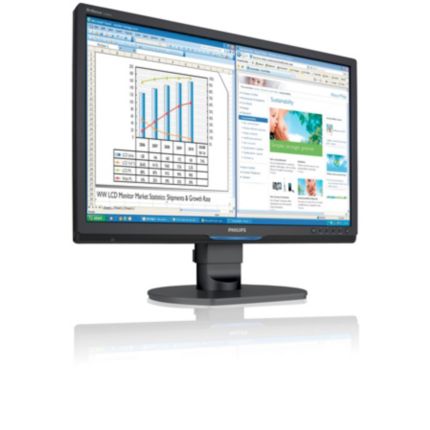

LCD widescreen monitor
22" wide WSXGA+
220BW9CB/69
|
|
|
| Designed for maximum productivity | |
|
TrueVision: Laboratory quality display performanceTrueVision is industry-leading, proprietary Philips testing and algorithm technology for monitor adjustment and fine tuning, an extensive process that ensures ultimate display performance in compliance with a standard four-times more stringent than Microsoft's Vista requirements from each and every monitor that leaves the factory - not just a few review samples. Only Philips goes to these lengths to deliver this exacting level of color accuracy and display quality in every new monitor. |
|
Big, widescreen ideal for viewing two A4 pages side-by-sideA big, widescreen display that improves productivity by displaying two A4 pages side-by-side. |
Empowered for Windows VistaPhilips Vista-ready monitors are empowered for vibrant, exciting display of this new, visually sophisticated and demanding Windows operating system, designed to enhance your entertainment experience, make you more productive and help you control your computing experience at home and in the office, making viewing, finding and organizing information for work or play quick, efficient and easy. |
|
| Outstanding front of screen performance | |
|
SmartImage: Optimized user friendly display experienceSmartImage is an exclusive, leading edge Philips technology that analyzes the content displayed on your screen. Based on a scenario you select, SmartImage dynamically enhances the contrast, color saturation and sharpness of images and videos for ultimate display performance - all in real time with the press on a single button. |
|
SmartContrast: For incredible rich black detailsSmartContrast is a Philips technology that analyzes the contents you are displaying, automatically adjusting colors and controlling backlight intensity to dynamically enhance contrast for the best digital images and videos or when playing games where dark hues are displayed. When Economy mode is selected, contrast is adjusted and backlighting fine-tuned for just-right display of everyday office applications and lower power consumption. |
| Great convenience | |
|
Dual input accepts both analog VGA and digital DVI signalsDual input provides connectors to accommodate input of both analog VGA and digital DVI signals. |
|
Hassle-free display performance tuning with SmartControl IISmartControl II is monitor-based software with an easy-to-use on-screen graphic interface that guides you through fine-tuning resolution, color calibration and other display settings including brightness, contrast, clock & phase, position, RGB, white point and - on models with onboard speakers - volume adjustments. |
|
Auto picture format control switching in wide and 4:3 formatPhilips auto picture format control on OSD is to switch from the 4:3 aspect ratio to the widescreen mode and back again to match the display's aspect ratio with your content for working with wide documents without scrolling or viewing widescreen media in the widescreen mode and distortion-free, native mode display of 4:3 ratio content. |
|
Tilt, swivel and height-adjust for an ideal viewing positionThe Compact Ergo Base is a 'people friendly' Philips monitor base that tilts, swivels and height adjusts so each user can position the monitor for maximum viewing comfort and efficiency. |
|
USB port for convenient peripheral connectionsUSB port allows user to conveniently connect their plug and play multimedia devices such as USB memory devices, camera, portable HDD, Web camera, PDA, Printer and many other devices which has USB connection available. The conveniently located USB 2.0 port on the monitor allows USB 2.0 signals to pass thru to the computer. Note that many devices like cameras and HDD may need to be powered On independently, as they have higher power requirements than the monitor USB port can provide |
|
Built in stereo audio for multimedia experienceA pair of high quality stereo speakers built into a display device. It can be visible front firing, or invisible down firing, top firing, rear firing, etc depending on model and design. |
| Picture/Display | |
| Panel Size | 22" / 55.9 cm |
| LCD panel type | 1680 x 1050 pixels, Anti-glare polarizer, RGB vertical stripe |
| Optimum Resolution | 1680 x 1050 @ 60Hz |
| Maximum Resolution | 1680 x 1050 @ 75Hz (analog), 1680 x 1050 @ 60 Hz (digital) |
| Display colors | 16.7 M |
| Aspect ratio | 16:10 |
| Brightness | 300 cd/m² |
| Contrast ratio (typical) | 1000:1 |
| SmartContrast ratio (dynamic) | 10000:1 |
| Viewing angle | 176º (H) / 170º (V), @ C/R > 5 |
| Response time (typical) | 5 ms |
| Effective viewing area | 474 x 296 mm |
| Horizontal Scanning Frequency | 30 - 83 kHz |
| Vertical Scanning Frequency | 56 - 75 Hz |
| Pixel pitch | 0.282 x 0.282 mm |
| sRGB | Yes |
| Connectivity | |
| Signal Input | VGA (Analog ), DVI-D, PC Audio in |
| USB | USB 2.0 x 1 |
| Audio output | Stereo Audio (3.5 mm jack) 1x |
| Sync Input | Composite Sync, Separate Sync, Sync on Green |
| Convenience | |
| User convenience | SmartControl II, SmartManage enabled, Picture format selection, On-screen Display |
| Built-in Audio | 1.5 W x 2 |
| Monitor Controls | Auto (Back), Brightness (Up), Menu (OK), Power On/Off, SmartImage, Volume control (Down) |
| OSD Languages | English, French, German, Italian, Russian, Simplified Chinese, Spanish, Portuguese |
| Plug & Play Compatibility | DDC/CI, Mac OS X, sRGB, Windows 98, Windows 2000, Windows XP, Windows Vista |
| Regulatory Approvals | CE Mark, Energy Star, FCC Class B, SEMKO, TCO '03, TÜV/GS, TÜV Ergo, UL/cUL |
| Height Adjustment | 70 mm |
| Swivel | +/-45° |
| Tilt | -5° to 20° |
| Other convenience | Kensington lock compatible |
| VESA Mount | 100 x 100 mm |
| Dimensions | |
| Set width (with stand) | 502 mm |
| Set width (with stand) (inch) | 19.8 inch |
| Set height (with stand) | 446 mm |
| Relative humidity | 20% - 80% |
| Set height (with stand) (inch) | 17.6 inch |
| Set depth (with stand) | 228 mm |
| MTBF | 50,000 hrs |
| Set depth (with stand) (inch) | 8.98 inch |
| Set Width | 502 mm |
| Set Width (inch) | 19.8 inch |
| Set Height | 346 mm |
| Set Height (inch) | 13.6 inch |
| Set Depth | 58 mm |
| Set Depth (inch) | 2.26 inch |
| Temperature range (operation) | 0°C to 40°C |
| Temperature range (storage) | -20°C to 60°C |
| Box width | 562 mm |
| Box width (inch) | 22.1 inch |
| Box height | 480 mm |
| Box height (inch) | 18.9 inch |
| Box depth | 168 mm |
| Box depth (inch) | 6.61 inch |
| Product weight (+stand) | 5.12 kg |
| Product weight (+stand) (lb) | 11.3 lb |
| Weight incl. Packaging | 6.8 kg |
| Weight incl. Packaging (lb) | 15.0 |
| Power | |
| Consumption (On mode) | < 45 W (Typical) |
| Consumption (economy mode) | 34 W |
| Complies with | Energy Star |
| Consumption (Off Mode) | < 0.8 W |
| Power LED indicator | Operation - Blue, Stand by/sleep -blue(blinking) |
| Power supply | Built-in, 100-240VAC, 50/60Hz |
