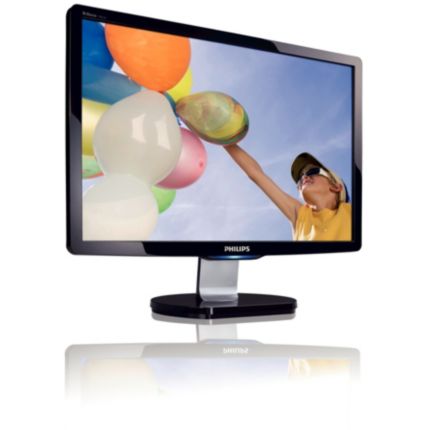

LCD widescreen monitor
19" wide WXGA+
190CW9FB/05
|
|
| Outstanding front of screen performance | |
|
SmartImage: Optimised user-friendly display experienceSmartImage is an exclusive leading-edge Philips technology that analyses the content displayed on your screen. Based on a scenario you select, SmartImage dynamically enhances the contrast, colour saturation and sharpness of images and videos for ultimate display performance - all in real time and at the press of a single button. |
|
Fast response time up to 2 msGtG response time is the average time that it takes for a pixel to go from one arbitrary position to another, which is the average time of transition between several sets of random colour levels. Faster is better: Lower response time means faster transitions and, therefore, results in fewer visible image artefacts in the display of fast moving images. GtG response time is an important way to measure display quality of multimedia content like movies, videos and games. |
|
SmartContrast 12000:1 for incredible rich black detailsYou want the LCD flat display with the highest contrast and most vibrant images. Philips advanced video processing combined with unique extreme dimming and backlight-boosting technology results in vibrant images. SmartContrast will increase the contrast with excellent black level and accurate rendition of dark shades and colours. It gives a bright, lifelike picture with high contrast and vibrant colours. |
|
TrueVision: Laboratory quality display performanceTrueVision is an industry leading, proprietary Philips testing and algorithm technology for the adjustment and fine-tuning of monitors, an extensive process that ensures ultimate display performance in compliance with a standard four-times more stringent than Microsoft's Vista requirements, for each monitor that leaves the factory - not just a few review samples. Only Philips goes to these lengths to deliver this exacting level of colour accuracy and display quality in every new monitor. |
| Designed for elegance | |
Glossy finish to enhance your decorAn attractive, elegantly finished glossy finish that fits in with and complements your decor. |
|
| Green design | |
|
Complies with TCO'06 safety and visual ergonomics standardTCO'06-compliant monitors meet ergonomic, environmental and health standards for multimedia displays created by TCO (the Swedish Confederation of Professional Employees); TCO'06, the most stringent ever, covers requirements for visual ergonomics in multimedia display, including health considerations as well as other features that characterise good quality displays. A TCO'06-compliant display's specifications must meet or exceed TCO'06 standards for visual ergonomics, emissions and energy conservation. |
| Great convenience | |
|
Hassle-free display performance tuning with SmartControl IISmartControl II is monitor-based software with an easy-to-use on-screen graphic interface that guides you through fine-tuning resolution, colour calibration and other display settings including brightness, contrast, clock and phase, position, RGB, white point and - on models with onboard speakers - volume adjustments. |
|
One-touch format switching between wide and 4:3 ratiosPhilips auto picture format is a button that switches from the 4:3 aspect ratio to the widescreen mode, and back again, to match the display's aspect ratio with your content for working with wide documents without scrolling or viewing widescreen media in the widescreen mode and distortion-free, native mode display of 4:3 ratio content. |
USB port for convenient peripheral connectionsThe USB port allows the user to conveniently connect their plug and play multimedia devices such as USB memory devices, camera, portable HDD, Web camera, PDA, Printer and many other devices that use USB connection. The conveniently located USB 2.0 port on the monitor allows USB 2.0 signals to pass through to the computer. Note that many devices like cameras and HDD may need to be powered on independently, as they have higher power requirements than the monitor USB port can provide. |
|
Cable management for a tidy work spaceCable management is a system that maintains tidy workspace by organising cables and wires required for the operation of a display device. |
|
| Picture/Display | |
| Panel Size | 19"/48.1 cm |
| LCD panel type | 1440 x 900 pixels, Anti-glare polariser, RGB vertical stripe |
| Optimum Resolution | 1440 x 900 @ 60 Hz |
| Maximum Resolution | 1440 x 900 @ 75 Hz |
| Display colours | 16.7 M |
| Brightness | 300 cd/m² |
| Aspect ratio | 16:10 |
| Contrast ratio (typical) | 1000:1 |
| SmartContrast ratio (dynamic) | 12000:1 |
| SmartResponse | 2 ms (Grey to Grey) |
| Picture enhancement | SmartImage |
| Response time (typical) | 5 ms |
| Effective viewing area | 410.4 x 256.5 mm |
| Viewing angle | 176º (H)/170º (V), @ C/R > 5 |
| Horizontal Scanning Frequency | 30 - 83 kHz |
| Vertical Scanning Frequency | 56 - 75 Hz |
| Pixel pitch | 0.285 x 0.285 mm |
| Video Dot Rate | 165 MHz |
| sRGB | Yes |
| Connectivity | |
| Signal Input | VGA (Analogue) |
| USB | USB 2.0 x 1 |
| Sync Input | Composite Sync, Separate Sync, Sync on Green |
| Convenience | |
| User convenience | SmartControl II, Picture format selection, On-screen Display |
| Monitor Controls | Auto (Back), Auto picture, Brightness Control, Input (Down), Menu (OK), Power On/Off, SmartImage |
| OSD Languages | English, French, German, Italian, Russian, Simplified Chinese, Spanish, Portuguese |
| Plug and Play Compatibility | DDC/CI, Mac OS X, sRGB, Windows 98, Windows 2000, Windows XP, Windows Vista |
| Regulatory Approvals | CE Mark, Energy Star, FCC Class B, SEMKO, UL/cUL, TCO '06 |
| Tilt | -5° to 20° |
| Other convenience | Kensington lock compatible |
| Dimensions | |
| Set width (with stand) | 443 mm |
| Set width (with stand) (inch) | 17.4 inch |
| Set height (with stand) | 368 mm |
| Set height (with stand) (inch) | 14.5 inch |
| Set depth (with stand) | 170 mm |
| Relative humidity | 20% - 80% |
| Set depth (with stand) (inch) | 6.69 inch |
| Set Width | 443 mm |
| MTBF | 50,000 hrs |
| Set Width (inch) | 17.4 inch |
| Set Height | 299 mm |
| Set Height (inch) | 11.8 inch |
| Set Depth | 65 mm |
| Set Depth (inch) | 2.57 inch |
| Temperature range (operation) | 0°C to 40°C |
| Temperature range (storage) | -20°C to 60°C |
| Box width | 495 mm |
| Box width (inch) | 19.5 inch |
| Box height | 423 mm |
| Box height (inch) | 16.7 inch |
| Box depth | 142 mm |
| Box depth (inch) | 5.59 inch |
| Product weight (+stand) | 4 kg |
| Product weight (+stand) (lb) | 8.82 lb |
| Weight incl. Packaging | 5.5 kg |
| Weight incl. Packaging (lb) | 12.1 |
| Power | |
| Consumption (On mode) | < 36 W (typical) |
| Consumption (economy mode) | 28 W |
| Consumption (Off Mode) | < 0.8 W |
| Complies with | Energy Star |
| Power LED indicator | Operation - Blue, Standby/sleep-blue (flashing) |
| Power supply | Built-in, 100-240 VAC, 50/60 Hz |
