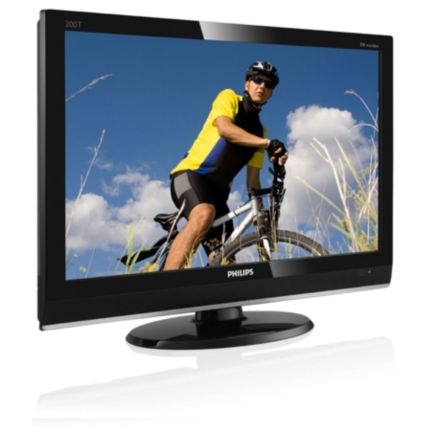

LCD Monitor with HD TV tuner
20''w T-line 1600x900 HD+
200T1SB/69
|
|
| Great picture quality | |
|
HD Ready for the highest quality display of HD signalsEnjoy the exceptional picture quality of High Definition pictures and be fully prepared for HD sources like HDTV settop box or Blu-ray disc. HD Ready is a protected label that offers picture quality beyond that of progressive scan. It conforms to strict standards laid out by EICTA to offer a HD screen that displays the benefits of resolution and picture quality of a High Definition signal. It has a universal connection for both analog YPbPr and uncompressed Digital connection of DVI or HDMI, supporting HDCP. It can display 720p, and 1080i signals at 50 and 60Hz. |
|
SmartContrast 50000:1 for incredible rich black detailsYou want the LCD flat display with the highest contrast and most vibrant images. Philips advanced video processing combined with unique extreme dimming and backlight boosting technology results in vibrant images. SmartContrast will increase the contrast with excellent blacklevel and accurate rendition of dark shades and colors. It gives a bright, lifelike picture with high contrast and vibrant colors |
|
Up to 5ms response time for clear, fast moving actionResponse time measures signal reaction speed in milliseconds. Faster response time is better as it eliminates visible image artifacts that could dampen your experience when viewing fast moving images or objects. In this case, this LCD panel gives you 5ms response time so that you can watch your LCD TV with a clear, fast moving action. |
|
SmartImage: Optimized user friendly display experienceSmartImage is an exclusive, leading edge Philips technology that analyzes the content displayed on your screen. Based on a scenario you select, SmartImage dynamically enhances the contrast, color saturation and sharpness of images and videos for ultimate display performance - all in real time with the press on a single button. |
HD+ LCD display, with a 1600 x 900 resolution |
|
| Great convenience | |
Remote control for TV functions |
|
Built-in TV tuner for viewing TV programs on your PC monitorA television tuner built into a monitor to display television signals as well as computer data. |
|
| Experience true multimedia | |
|
HDMI-ready for top quality, multimedia experienceA HDMI-ready device has all the required hardware to accept High-Definition Multimedia Interface (HDMI) input, high quality digital video and audio signals all transmitted over a single cable from a PC or any number of AV sources including set-top boxes, DVD players and A/V receivers and video cameras. |
|
Incredible Surround for enhanced audio enjoymentIncredible Surround is an audio technology from Philips that dramatically magnifies the sound field to immerse you in the audio. Using state-of-the-art electronic phase shifting, Incredible Surround mixes sounds from left and right in such a way that it expands the virtual distance between the two speakers. This wider spread greatly enhances the stereo effect and creates a more natural sound dimension. Incredible Surround allows you to experience total surround with greater depth and width of sound, without the use of additional speakers. |
SmartSound selects a perfect mode for audio performanceSmartSound allows you to select various modes like Movie, Games, Music etc thereby automatically activating pre defined frequencies to enhance the sound related to the function |
|
| Picture/Display | |
| Aspect ratio | Widescreen, 16:9 |
| Brightness | 250 cd/m² |
| SmartContrast | 50000:1 |
| Contrast ratio (typical) | 1000:1 |
| Diagonal screen size (inch) | 20 inch |
| Diagonal screen size (metric) | 50.8 cm |
| Panel resolution | 1600 x 900 |
| Picture enhancement | Progressive Scan, TrueVision |
| Response time (typical) | 5 ms |
| Screen enhancement | Anti-Reflection coated screen |
| Viewing angle | 170º (H) / 160º (V) |
| Supported Display Resolution | |
| Computer formats | 1600 x 900, 60Hz |
| Video formats | 480i, 60Hz, 480p, 60Hz, 576i, 50Hz, 576p, 50Hz, 720p, 50, 60Hz, 1080i, 50, 60Hz, 1080p, 50, 60Hz |
| Sound | |
| Output power (RMS) | 2 x 3W |
| Sound Enhancement | Incredible Surround, Smart Sound |
| Sound System | Mono, Stereo |
| Convenience | |
| Ease of Installation | Automatic Tuning System (ATS), Plug & Play |
| Ease of Use | On Screen Display, Program List, Side Control |
| Remote control | 200T1 Remote control |
| On-Screen Display languages | English, Simplified Chinese |
| Other convenience | VESA mount (100x100mm) |
| Screen Format Adjustments | Widescreen, Normal, Zoom 1, Zoom 2 |
| Smart mode | Movie, Standard, Personal, Vivid, Eco |
| SmartSound | Music, Speech, Personal |
| Tuner/Reception/Transmission | |
| Aerial Input | 75 ohm coaxial (IEC75) |
| TV system | PAL I, PAL B/G, PAL D/K |
| Video Playback | NTSC, PAL |
| Tuner Display | PLL |
| Connectivity | |
| Signal Input | VGA (Analog ), HDMI, PC Audio in |
| Ext 1 | CVBS in, Audio L/R in |
| Ext 2 | YPbPr in, Audio L/R in |
| Ext 3 | CVBS out, Audio L/R out |
| Other connections | S-Video in, CVBS in, Audio L/R in, Headphone out |
| Power | |
| On mode | 29W (Typ.@monitor mode) |
| Off mode | 0.5W |
| Ambient temperature | 0 °C to 40 °C |
| Mains power | 100-240V, 50/60Hz |
| Dimensions | |
| Product with stand (mm) | 361 x 490 x 176 mm |
| Product without stand (mm) | 327 x 490 x 65 mm |
| Packaging in mm (WxHxD) | 420 x 565 x 160 mm |
| Weight | |
| Product with stand (kg) | 4.9 kg |
| Product without stand (kg) | 4.7 kg |
| Product with packaging (kg) | 6.6 kg |
| Accessories | |
| Included Accessories | Table top stand, Power cord, Quick start guide, User Manual, Remote Control, Batteries for remote control |

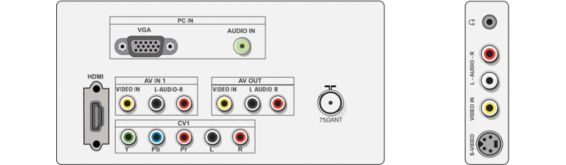

| Connector drawing |
|
|
