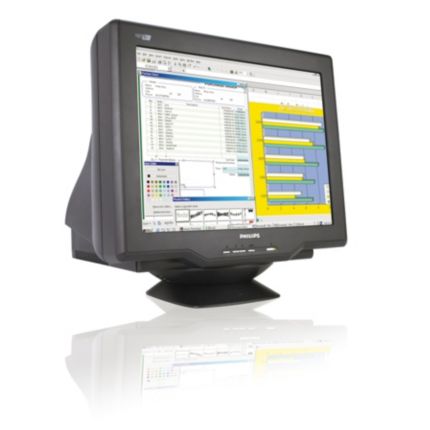

CRT monitor
17" real flat XGA
107S96/97
|
|
| Outstanding front of screen performance | |
|
Philips breakthrough advanced Digital Deflection CPUAn exclusive Philips innovation -- the world's first one-chip CRT solution -- combines the deflection and the Microcontroller in a single chip to process and control input sync digitally. This innovative technology prevents electronic noise that can harm display quality, reduces display jitter and improves geometry for better front of screen performance. |
High Bright Hot Key instantly adjusts brightness levelsA feature that delivers instant brightness adjustment to the ideal level for viewing text, Internet, game or multimedia applications, providing comfortable viewing and an enhanced experience for each type of application. |
|
XGA 1024x768 resolution for sharper displayFor graphics monitors, the screen resolution signifies the number of dots (pixels) on the entire screen. For example, a 1024-by-768 pixel screen is capable of displaying 1024 distinct dots on each of 768 lines, or about 786 thousand pixels. XGA provides resolutions of 640 by 480 or 1024 by 768 pixels. |
|
Easy-on-the-eyes high-bright, high-contrast tubeA CRT tube designed to increase display brightness and contrast by increasing the CRT ray gun's beam current. |
|
|
Real flat CRT for natural, distortion and glare-free displayPhilips advanced flat CRT technology reduces glare and reflection more efficiently than a conventional CRT. The special high-bright, high-contrast shadow mask helps maintain sharper focus and eliminates 'color blooming' compared to standard tubes. It displays images on a monitor that look like images on paper: Viewing the image is more comfortable. Straight lines are straight. Finding a reflection-free viewing position is much easier. This adds up to reduced eyestrain for a comfortable viewing experience. |
|
sRGB ensures color matching between display and printoutssRGB is an industry standard that ensures the best possible match between the colors displayed on your screen and those in your printouts. |
| Great convenience | |
Compatibility with PC and Mac platformsThe ability to work with a variety of platforms; Philips monitors are compatible to connect with PC by employing a VGA connection and connect with Macintosh. |
|
|
|
| Green design | |
|
Lower power consumption than the industry averageReduction of the electrical power required to operate a device to achieve real savings. |
|
MPRII ensures safety by limiting electromagnetic radiationThe world standard setting stringent levels for electromagnetic radiation emitted by monitors. |
|
For your safety: Aerospace composite fire retardant casePC/ABS plastic composite is the industry's best and toughest flame-retardant casing material; and is a space-age compound deployed in the aerospace and automotive industries as well as in fire detectors that is compliant with most stringent fire safety standards. |
| Picture/Display | |
| Digital deflection | Yes |
| Display screen type | Real Flat picture tube |
| Dot pitch | 0.25 mm |
| Factory Preload Modes | 10 modes |
| Factory Preset Modes | 8 modes |
| Dot Pitch (horizontal) | 0.21 mm |
| GTF | Yes |
| Horizontal Scanning Frequency | 30 - 71 kHz |
| Maximum Resolution | 1280 x 1024 @ 60 Hz |
| Panel Size | 17"/ 41 cm |
| Recommended Display Area(inch) | 12" x 9" |
| Factory Preset Mode | 1024 x 768 @ 75 Hz, 1024 x 768 @ 85 Hz, 1280 x 1024 @ 60 Hz, 640 x 480 @ 60 Hz, 640 x 480 @ 85Hz, 720 x 400 @ 70 Hz, 800 x 600 @ 75 Hz, 800 x 600 @ 85 Hz |
| Recommended display area(mm) | 306 x 230 mm |
| Phosphor | P22 |
| Recommended Refresh Rate | 85 Hz |
| Screen enhancement | Anti-glare Polarizer, Anti-Reflection, Anti-Static, High Brightness, High Contrast |
| Optimum Resolution | 1024 x 768 @ 85 Hz |
| White Chromaticity, 6500K | x = 0.313 / y = 0.329 |
| White Chromaticity, 9300K | x = 0.283 / y = 0.297 |
| sRGB | Yes |
| Vertical Scanning Frequency | 50 - 160 Hz |
| Video Dot Rate | 110 MHz |
| Connectivity | |
| Cable Connection | AC Power in |
| Cables | D-sub Video Cable, Power Cord |
| Sync input impedance | 2.2k ohm |
| Video input impedance | 75 ohm |
| Video input signal levels | 0.7 Vpp |
| Sync Input | Separate Sync |
| Video Sync Polarities | Positive and Negative |
| Convenience | |
| User convenience | Menu Languages, On-screen Display |
| Monitor Controls | Bright Direct Access, Contrast Direct Access, High Bright Hotkey, Menu, Power On/Off |
| OSD Languages | English, Simplified Chinese |
| Swivel | +/- 90° |
| Plug & Play Compatibility | DDC 2B, Windows 98/ME/2000/XP/Vista |
| Tilt | -5° to 13° |
| Regulatory Approvals | CCC, CECP, MPR-II, Low Emission |
| Accessories | |
| Included Accessories | AC Power Cord |
| User Manual | Yes |
| Dimensions | |
| Temperature range (operation) | 0°C to 40°C |
| Temperature range (storage) | -25°C to 65°C |
| Set Width | 397 mm |
| Set Height | 382 mm |
| Set Depth | 423.5 mm |
| Set Width (inch) | 15.6 inch |
| Set Height (inch) | 15 inch |
| Set Depth (inch) | 16.7 inch |
| Set weight | 13.5 kg |
| Set weight (lb) | 29.7 lb |
| Weight incl. Packaging | 15.8 kg |
| Weight incl. Packaging (lb) | 34.83 |
| Box width | 460 mm |
| Box height | 450 mm |
| Box depth | 526 mm |
| Box width (inch) | 18.11 inch |
| Box height (inch) | 17.72 inch |
| Box depth (inch) | 20.71 inch |
| Power | |
| Consumption (On mode) | 62 W (Typical) |
| Consumption (Off Mode) | < 2 W |
| Power LED indicator | Off - Flashing Green, Operation - green |
| Power supply | Built-in, 100-264 VAC, 50/60 Hz |
